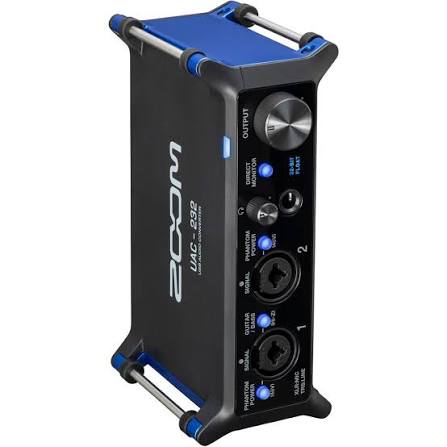

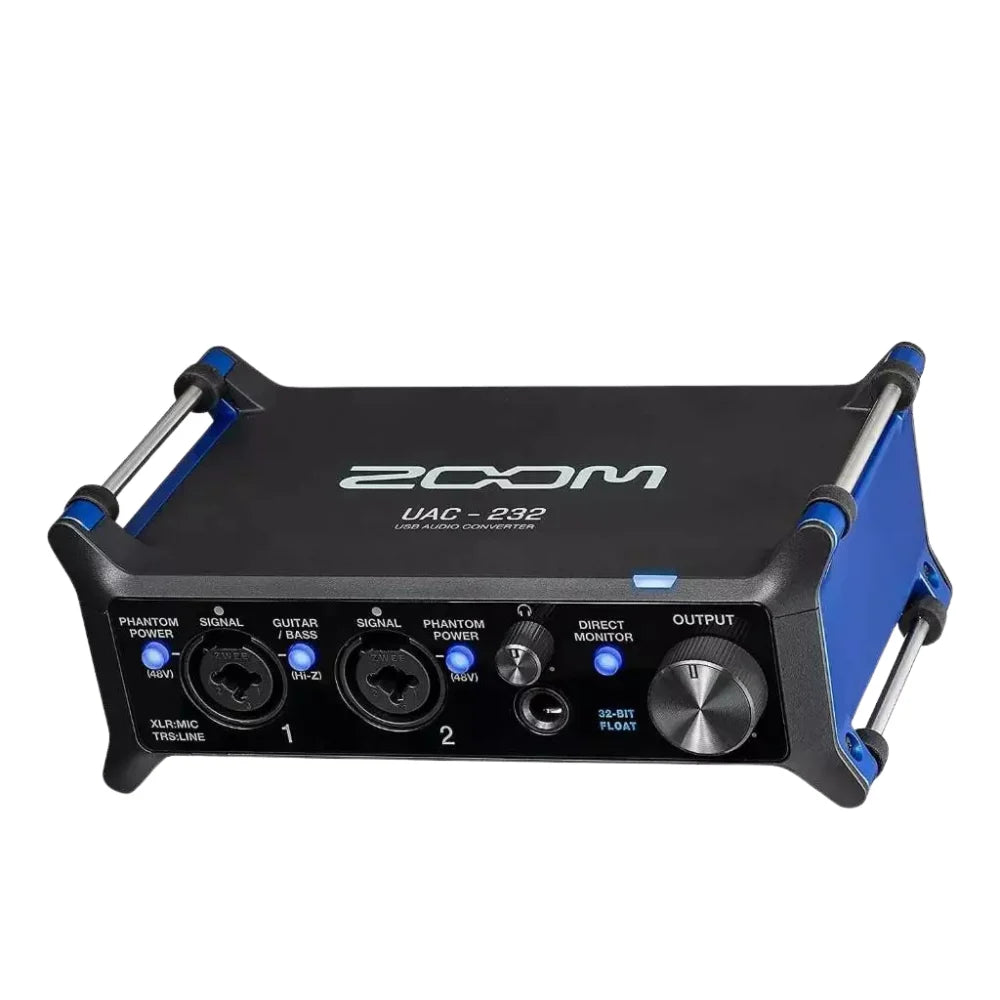

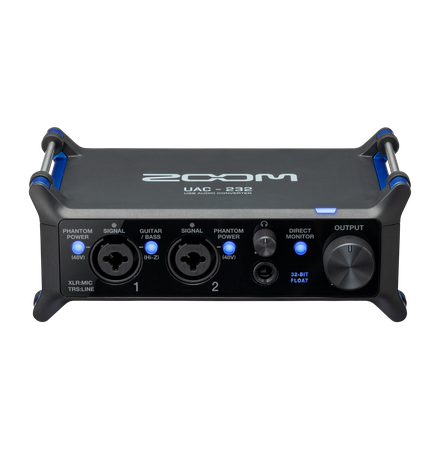

ZOOM UAC-232/C
The ZOOM UAC-232 USB Audio Converter is the first dedicated 32-bit float audio interface, designed for musicians who demand more quality in their productions.
Type: 2-In / 2-Out USB-C Audio Interface
Audio Resolution: 32-bit Float / 24-bit
Maximum Sample Rate: 192 kHz
Inputs: 2 × XLR/TRS Combo (Mic/Line)
Hi-Z Input: Yes (Input 1 & 2)
Phantom Power: +48 V
Input Impedance:
XLR: 2.7 kΩ
TRS: 4 kΩ
Hi-Z: 1 MΩ
Maximum Input Level:
XLR: +6 dBu
TRS: +24 dBu
Hi-Z: +11.5 dBu
Equivalent Input Noise: ≤ -127 dBu (IHF-A)
Main Outputs: 2 × Balanced TRS
Maximum Output Level: +18 dBu
Headphone Output: 100 mW + 100 mW (63 Ω)
MIDI: 5-pin DIN MIDI In / Out
USB Interface: USB 2.0 Type-C
Audio Channels: 2-In / 2-Out
Frequency Response:
44.1 kHz: 20 Hz – 20 kHz
192 kHz: 20 Hz – 80 kHz
Direct Monitoring: Yes
Power Supply: USB Bus Power or 5V USB-C External Power
Power Consumption: Max. 5 W
Dimensions (W × D × H): 164 × 105.5 × 65 mm
Weight: 355 g
